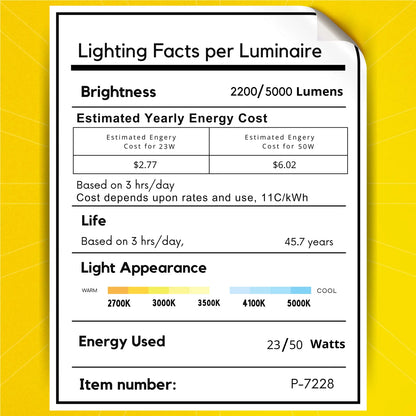

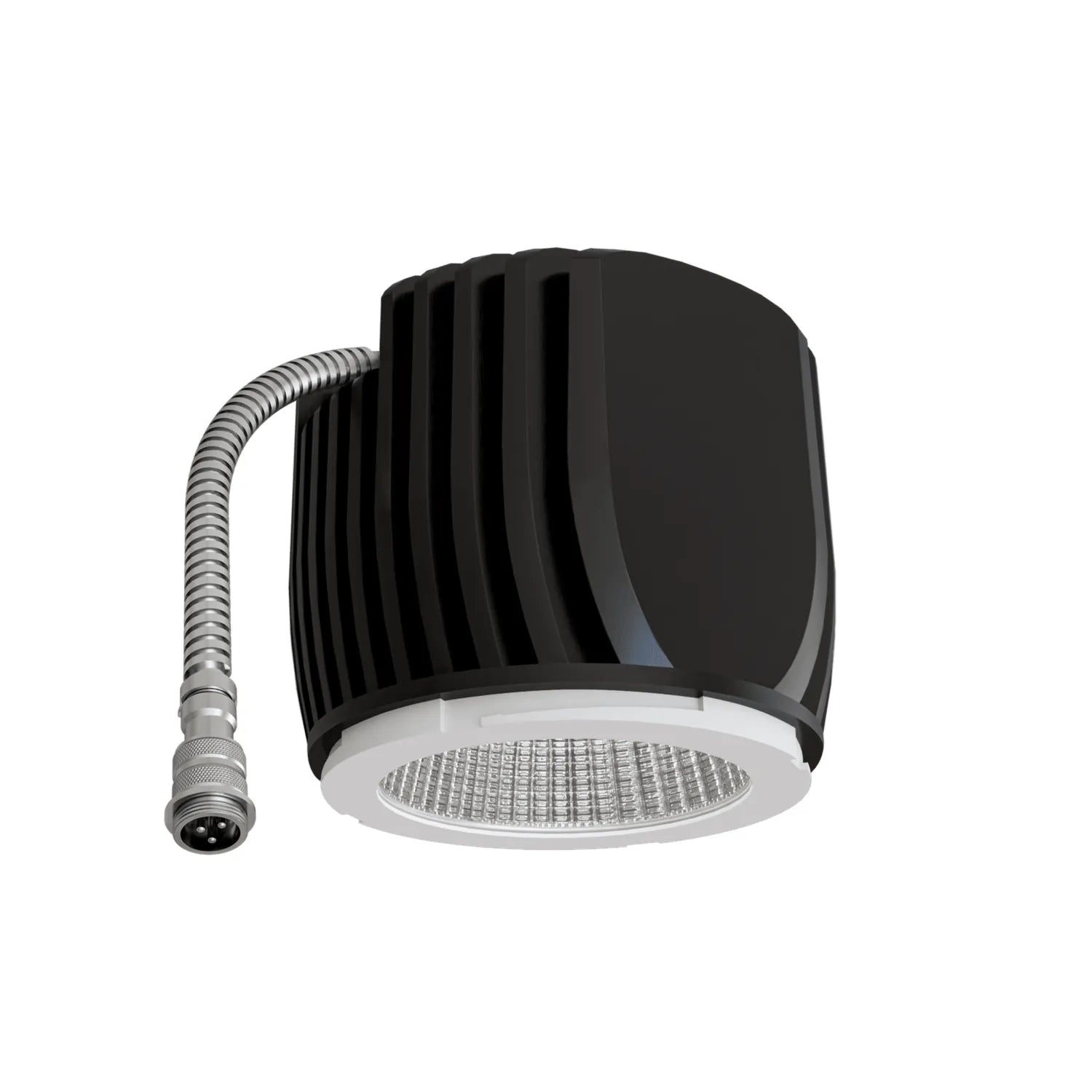

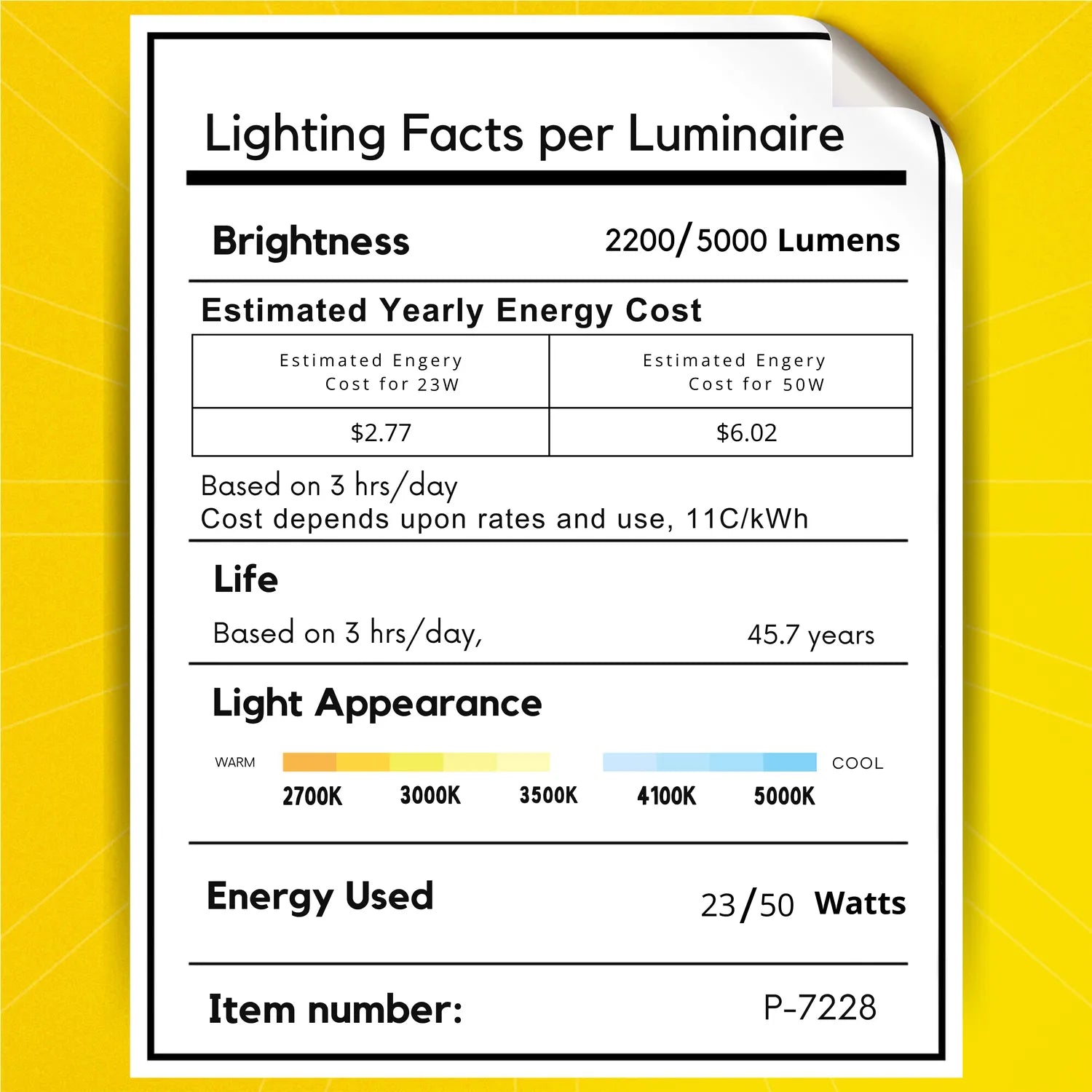

Introducing the 5-inch Black Recessed Light Engine, the perfect solution for both recessed downlight installation and enhanced lighting performance. This high-quality LED downlight engine delivers an impressive 5000/2200 Lumens of brightness, equivalent to a 180W traditional bulb but only consumes 50/23W of power, making it highly energy-efficient. With a high CRI rating of >90, it ensures your space is illuminated with natural and accurate colors, perfect for any room.

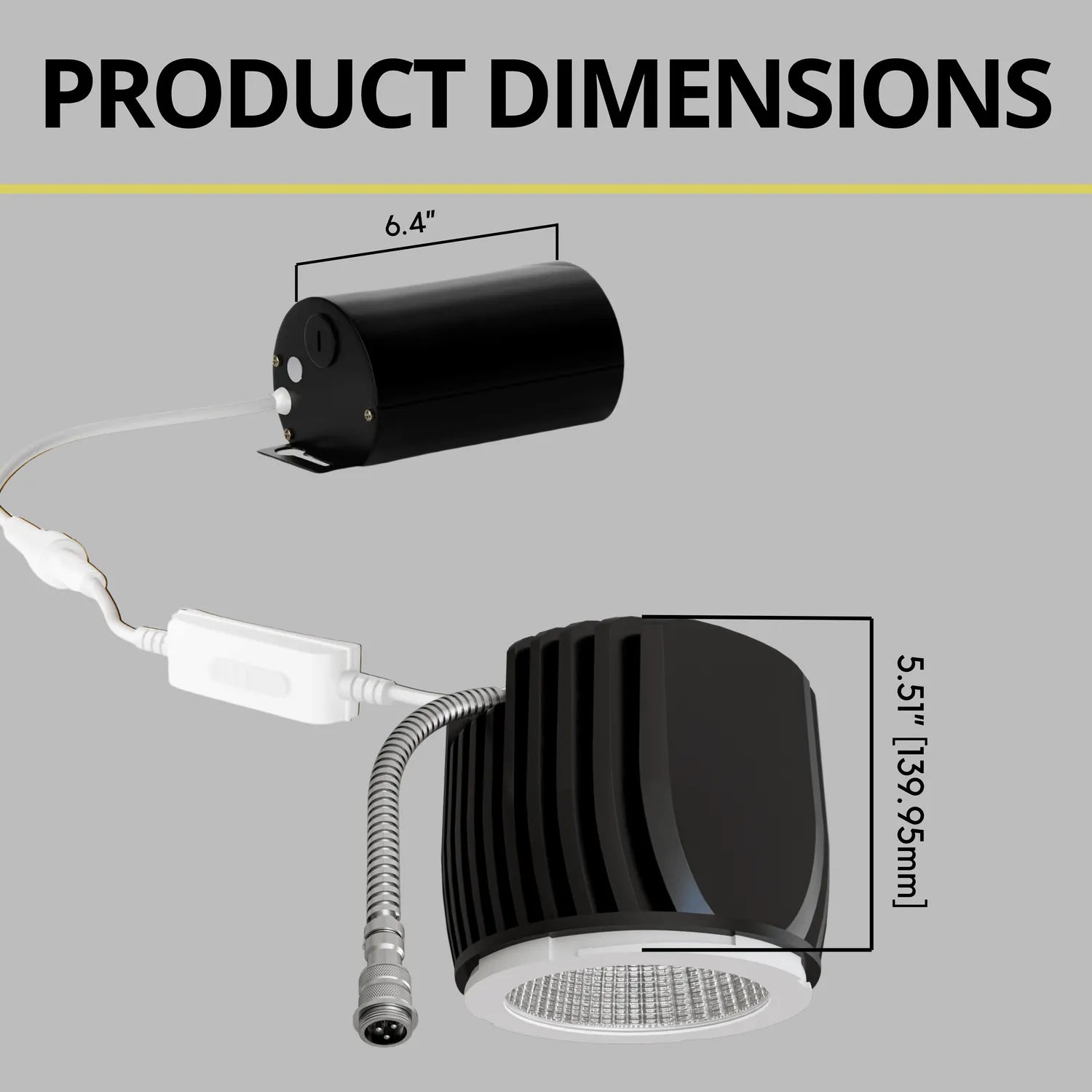

Designed with a compact height of 5.90 inches, it features outside dimensions of 8.11 inches and a cutout size of 5.10 inches, ensuring a seamless fit in most ceiling types. It is dimmable and offers color-selectable options, allowing you to choose from 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures, including soft white, warm white, bright white, neutral white, and daylight, all easily adjustable via a switch on the back of the fixture.
This LED downlight engine operates on 120/277V and comes with a BX connection for quick, secure installation. The beam spread of 50° provides broad, even illumination, perfect for creating a well-lit environment. It’s ETL-listed and TITLE 24 compliant for safety, and with its 3-year warranty, you can trust that this product will deliver long-lasting, reliable performance. Plus, it's rated for use in wet locations, ensuring its durability in various settings.
- Watts : 23-50W
- Lumens : 2200-5000
- Eq. Watts: 180W
- Shape: Engine
- Finish:
- Trim Style: Smooth
- Size: 5 Inch
- CRI: >90
- Volts: 120/277V
- Classification: ETL, TITLE 24
- Beam Spread: 50
- Outside Dimensions: 6.29 Inch
- Cutout: 5.10 Inch
- Height: 5.90 Inch
- Warrenty: 3 Years

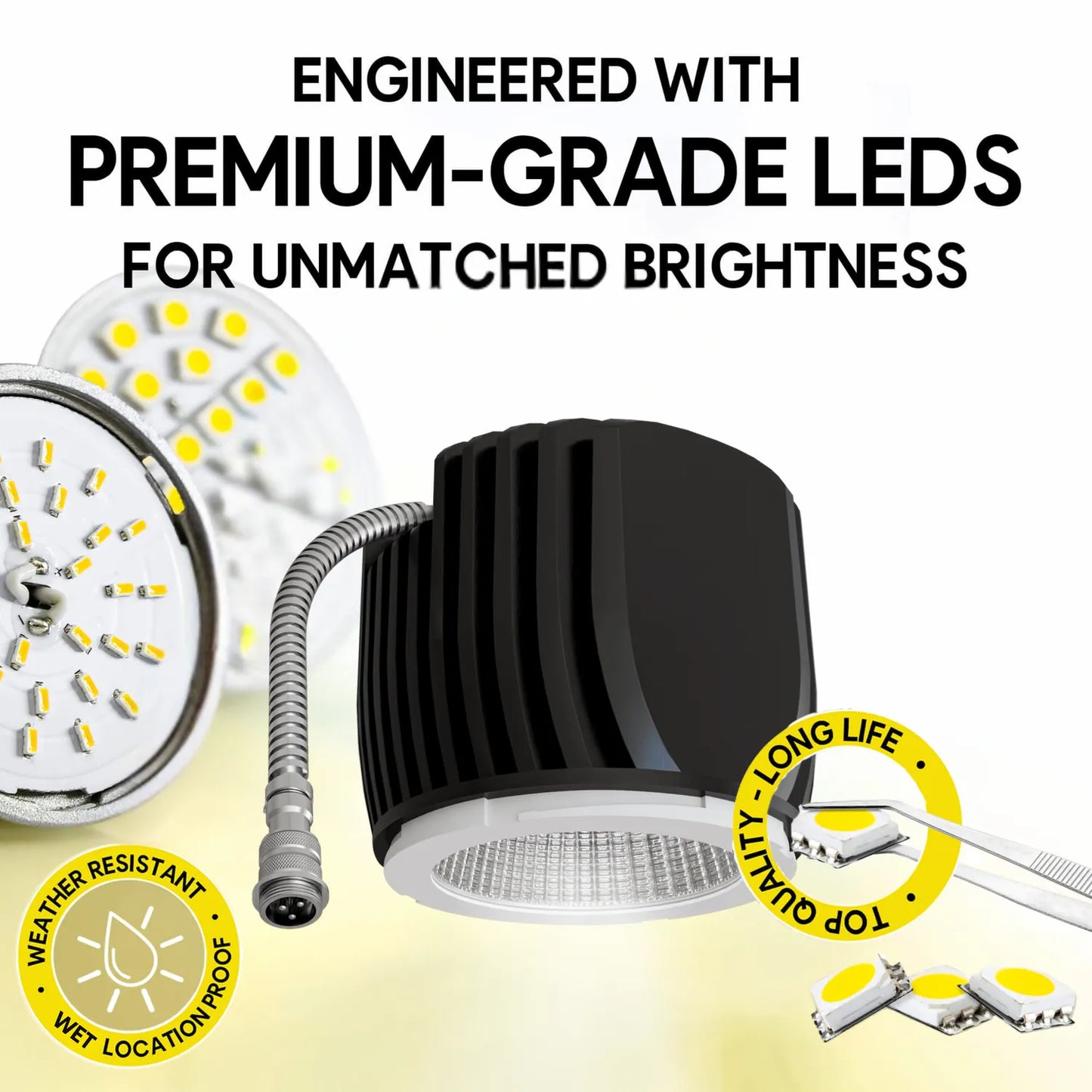

- Environment: Wet Location
- CCT: 27,30,35,41,50K

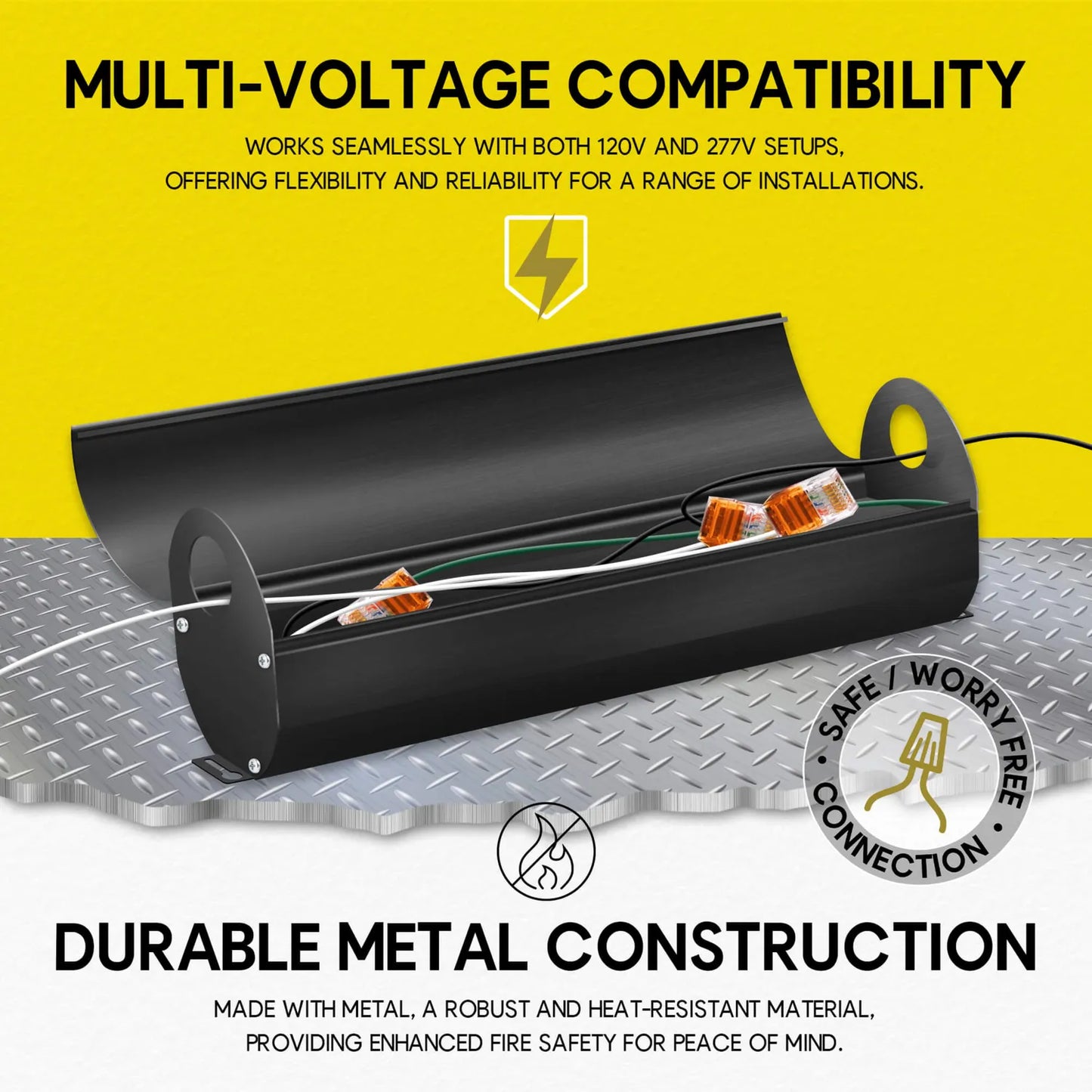

- Connection type: BX Connection
